PRODUCT DESIGN

TITLE

SOLAR ENERGY IS THE MOST SOURCE OF ENERGY ON OUR PLANET. SOLAR ENERGY IS CONVERTED IN TO ELECTRICAL ENERGY ITS MEANS OF ARRAYS OF PHOTOVOLTAIC MODULES. VERY SPECIALLY DESIGNED PHOTOVOLTAIC CABLES ARE USED IN THESES MODULES.

TYPES OF CABLES

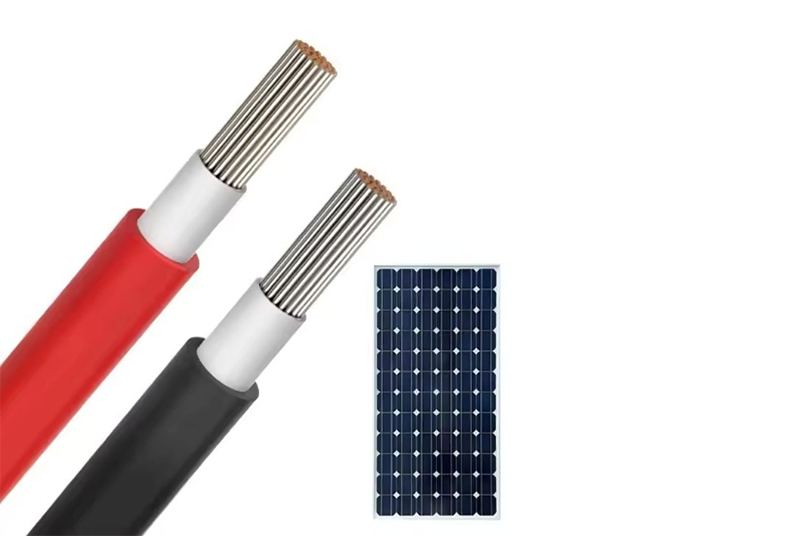

SINGLE CORE ANNEALED TINNED FLEXIBLE COPPER CABLES (DOUBLE INSULATED) PV1-F & H1Z272-K

DESIGNATION

UV RESISTANCE POLYOLEFIN COPOLYMER HALOGEN FREE FIRE RETARDANT LOW SMOKE DOUBLE INSULATED ROUND FLEXIBLE TIN COPPER CABLES

CABLE DESIGN:

TIN COPPER CONDUCTOR

FLEXIBLE TINNED COPPER CONDUCTOR (1EC 60228)

INSULATION

POLYOLEFIN COPOLYMER HALOGEN FREE FIRE RETARDANT LOW SMOKE COMPOUND

SHEATH

HIGHLY WEATHER & UV RESISTANCE, POLYOLEFIN COPOLYMER HALOGEN FREE FIRE RETARDANT LOW SMOKE COMPOUND

MECHANICAL PROPERTY (INSULATION-HFFR)

TENSILE STRENGTH : 6.5 N / MM² (Min.) ACCORDING TO EN 60811-1-1 , ELONGATION : 125% (Min.) ACCORDING TO EN 60811-1-1

MECHANICAL PROPERTY (SHEATH-HFFR)

TENSILE STRENGTH : 8.0 N / MM² (Min.) ACCORDING TO EN 60811-1-1 , ELONGATION : 125% (Min.) ACCORDING TO EN 60811-1-1

TEMP. RANGE

(-40° C to + 90° C)

TEST VOLTAGE

6.5 KV FOR 5 MINUTE (AC)

VOLUME RESISTIVITY INSULATION (ELECTRICAL PROPERTY) EN 50395

1 X 10¹⁴ (Min.) Ω - cm AT 20° C TEMP

1 X 10¹¹ (Min.) Ω - cm AT 90° C TEMP.

CORE COLOR

WHITE

SHEATH COLOR

RED , BLACK , RED WITH BLACK STRIP , BLACK WITH RED STRIPE

ELECTRICAL CHARACTERISTICS

RATED VOLTAGE:0.6 / 1 KV AC, RATED VOLTAGE: 1.5 KV DC

CABLES FEATURES

- HIGH THERMAL RATING TO WITHSTAND EXTREME TEMPERATURES.

- SPECIALLY DESIGNED TO WITHSTAND EXTREME WEATHER CONDITIONS.

- UV RESISTANCE ACCORDING TO HD 605 / A1

- FLAME RETARDANT TO IEC 60332-1-2

- HALOGEN FREE ACCORDANCE WITH BS EN 50525-1

- LOW SMOKE DENSITY ACCORDANCE WITH IEC 61034-2

- EXCELLENT ABRASION AND NOTCH RESISTANT

- VERY GOOD CURRENT CARRYING CAPACITY OF ACCORDING TO REQUIREMENT FOR PV CABLE SYSTEMS THE CABLES ARE AVAILABLE PROGRESSIVE SEQUENTIAL MARKING, BRAND NAME AND SIZE PRINTED ON SHEATH

APPLICATION

NEONEX U-PV SOLAR CABLES ARE DESIGNED FOR USE IN PHOTOVOLTAIC POWER SUPPLY SYSTEMS BOTH FOR INDOOR AND / OR OUTDOOR SOLAR ENERGY APPLICATIONS.

REF. STD.

2Pfg 1169/08.2007,EN 50618-2014, IEC 60228

APPROVAL

TUV RHEINLAND CERTIFICATE NO. R 60160536 (PV1-F, H1Z2Z2-K)

ISO CERTIFICATION

ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, CE, ROHS

PRODUCT CERTIFICATION

IS 694: 2010 7098 P-1 , TUV RHEINLAND CERTIFICATE No. R 60160877

TECHNICAL DETAILS & DIMENSION AS PER TUV 2PFG 1169/08.2007 (PV1-F)

NUMBER AND NOMINAL CROSS SECTIONAL AREA OF CONDUCTORS

NOS.& DIA OF WIRE (MAX.)

MIN. INSULATION THICKNESS

MIN. SHEATH THICKNESS

NOMINAL OVERALL DIMENSION

TINNED COPPER MAXIMUM DC RESISTANCE @ at 20 ° C

MAX. CURRENT CARRYING CAPACITY (AIR) AT at 60° c

MAX. CURRENT CARRYING CAPACITY (SURFACE) AT at 60° c

m m ²

mm

mm

mm

mm

Ω/km

Amps

Amps

1 x 2.5

36/0.3

0.50

0.50

4.70

7.56

41

39

1 x 4

56/0.3

0.50

0.50

5.20

5.09

55

52

1 x 6

84/0.3

0.50

0.50

5.70

3.39

70

67

TECHNICAL DETAILS & DIMENSION AS PER TUV SPECIFICATION- EN 50618:2014 (H1Z2Z2-K)

NUMBER AND NOMINAL CROSS SECTIONAL AREA OF CONDUCTORS

NOS. & DIA OF WIRE (MAX.)

NOMINAL INSULATION THICKNESS

NOMINAL SHEATH THICKNESS

NOMINAL OVERALL DIMENSION

TINNED COPPER MAXIMUM DC RESISTANCE @ at 20 ° C

MAX. CURRENT CARRYING CAPACITY (AIR) AT at 60° c

MAX. CURRENT CARRYING CAPACITY (SURFACE) AT at 60° c

mm ²

Nos./mm

mm

mm

mm

Ω / km

Amps

Amps

1 x 2.5

36/0.3

0.7

0.8

5.30

7.56

41

39

1 x 4

56/0.3

0.7

0.8

5.80

5.09

55

52

1 x 6

84/0.3

0.7

0.8

6.30

3.39

70

67

1 x 10

140/0.3

0.7

0.8

7.90

1.95

98

93

1 x 16

224/0.3

0.7

0.9

9.20

1.24

132

125

1 x 25

350/0.3

0.9

1.0

11.20

0.795

176

167

1 x 35

490/0.3

0.9

1.1

12.60

0.565

218

207

1 x 50

703/ 0.3

1.0

1.2

14.50

0.393

276

262

1 x 70

988/0.3

1.1

1.2

16.50

0.277

347

330

1 x 95

1349/0.3

1.1

1.3

18.70

0.21

416

395

1 x 120

608/0.5

1.2

1.3

21.00

0.164

488

464
