PRODUCT DESIGN

APPLICABLE STANDARD

IS 694:2010

CONDUCTOR

THE CONDUCTORS ARE DRAW FROM 99.97 % BRIGHT ELECTROLYTIC GRADE COPPER WITH MORE THAN 100 % CONDUCTIVITY ARE ANNEALED AND BUNCHED TOGETHER (CLASS-2 & 5)

PVC INSULATION

THE BUNCH CONDUCTORS ARE INSULATED WITH SPECIALLY FORMULATED PVC COMPOUND WITH A HIGH INSULATION RESISTANCE VALUE.
THE INSULATION PROCESS IS CARRIED OUT ON MODERN HIGH SPEED EXTRUSION LINES, WHICH ENSURES HIGH ACCURACY AND CONSISTENCY IN PERFORMANCE

PVC SHEATH

THE SHEATHING MATERIAL PROVIDED RESISTANCE TO OIL, AND MOISTURE AND SUPERIOR MECHANICAL STRENGTH WITHOUT LOSING ITS FLEXIBILITY

OPERATING TEMPERATURE RANGE:

TEMP -15°C TO MAX, +70°C/ +85°C

SHEATH COLOUR

BLACK (AND ALSO OTHER COLOUR REQUEST ON CUSTOMER)

PACKING

100m, 500m & 1000m. (+/-5%) HIGHER LENGTH AVAILABLE ON REQUEST.

MARKING

THE CABLES ARE PRINTED WITH GENERIC MARKING NEONEX Cables

APPLICATION

THIS TYPE OF CABLES USED FOR WIRING IN MACHINES, CONTROL PANELS, ELECTRIC POWER SUPPLY MODERN ELECTRIC APPLIANCES AND EQUIPMENTS

FEATURE

MANUFACTURED FROM BRIGHT ANNEALED 99.97 % PURE COPPER CONDUCTORS AND HENCE, OFFER LOW CONDUCTOR RESISTANCE. OUTER SHEATH CONSISTS OF HIGHLY ABRASION RESISTANT PVC COMPOUND IMPERVIOUS TO GREASE, OIL AND WATER ETC EXCELLENT MECHANICAL AND ELECTRICAL PROPERTIES. PROGRESSIVE SEQUENTIAL LENGTH MARKING ON EVERY METER.

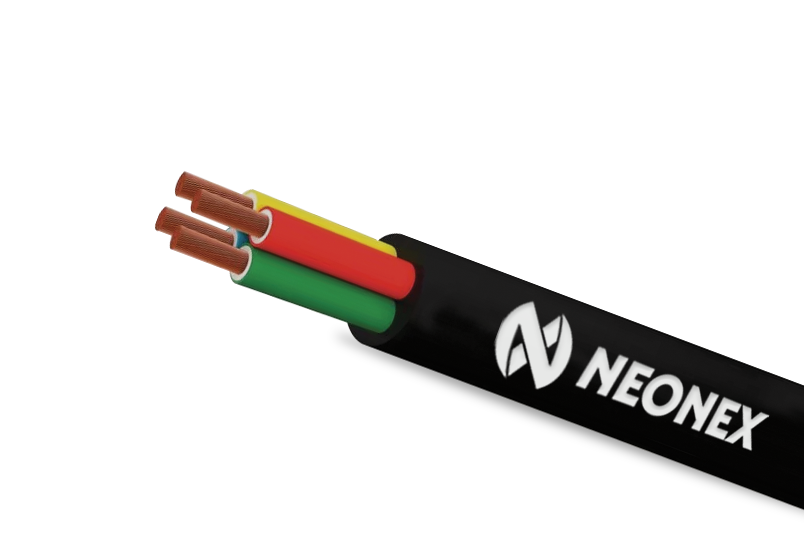

CORE COLOUR

2 CORE: RED, BLACK
3 CORE:RED, BLACK, GREEN
4 CORE: RED, YELLOW, BLACK, GREEN
5 CORE: RED, YELLOW, BLUE, BLACK, GREEN

ISO CERTIFICATION

ISO 9001:2015, ISO 45001:2018, ISO 14001: 2015, CE, RoHS

PRODUCT CERTIFICATION

IS 694:2010  7098 P-1  TUV RHEINLAND CERTIFICATE No. R 60160877
