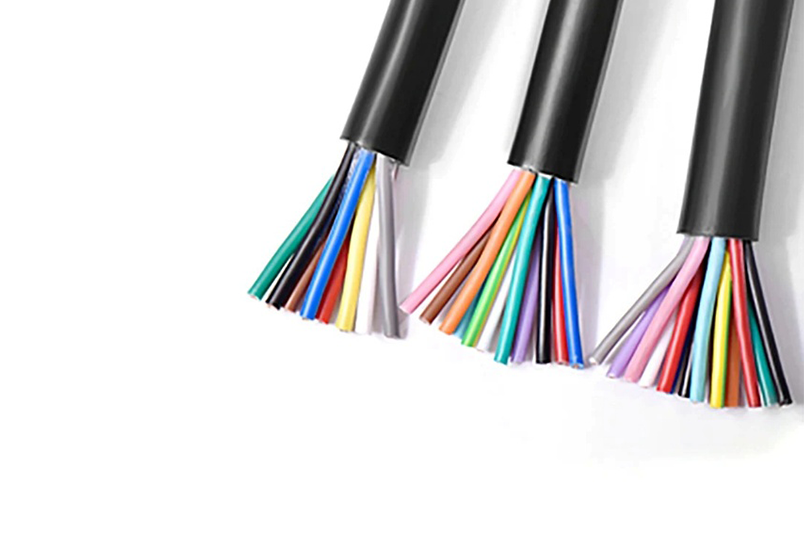

Round Control Cable
TECHNICAL DATA | ||||||||||||||||||
NOMINAL CROSS SECTIONAL AREA OF CONDUCTOR | NUMBER/ NOMINAL DIA OF WIRES (NOM) Number/mm | THICKNESS OF INSULATION (NOM.) | THICKNESS OF SHEATH (NOM.) | APPROX OVERALL DIA | D.C. RESISTANCE MAX. AT 20° C | MAX. CURRENT CARRYING CAPACITY | ||||||||||||
6 Core | 7 Core | 10 Core | 12 Core | 16 Core | 19 Core | 24 Core | 6 Core | 7 Core | 7 Core | 10 Core | 12 Core | 16 Core | 19 Core | |||||
Sq. mm | Number/mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Ω/km | Amps |
O.5 | 16/0.2* | 0.6 | 0.90 | 0.90 | 1.0 | 1.0 | 1.1 | 1.1 | 1.2 | 7.60 | 9.20 | 11.50 | 12.20 | 13.30 | 14.00 | 16.40 | 39 | 4 |
0.75 | 24/0.2* | 0.6 | 1.0 | 1.0 | 1.1 | 1.1 | 1.2 | 1.2 | 1.3 | 9.80 | 9.80 | 12.50 | 13.00 | 14.40 | 15.10 | 17.80 | 26 | 7 |
1.0 | 14/0.3 | 0.6 | 1.0 | 1.0 | 1.1 | 1.1 | 1.2 | 1.3 | 1.4 | 10.50 | 10.50 | 14.20 | 14.70 | 16.40 | 17.30 | 20.20 | 18.10 | 12 |
1.5 | 22/0.3 | 0.6 | 1.0 | 1.0 | 1.1 | 1.1 | 1.2 | 1.3 | 1.4 | 12.40 | 12.40 | 15.80 | 16.20 | 18.00 | 19.30 | 22.90 | 12.10 | 16 |
2.5 | 36/0.3 | 0.7 | 1.0 | 1.0 | 1.3 | 1.3 | 1.4 | 1.4 | 1.5 | 14.20 | 14.20 | 18.50 | 19.20 | 21.50 | 23.30 | 27.00 | 7.41 | 22 |
NOTE:
- THE NUMBER OF WIRES AND DIAMETER MENTIONED IN THE TABLE ARE APPROXIMATE AND NOMINAL, HOWEVER THEY SHALL MEET THE REQUIREMENTS OF CONDUCTOR RESISTANCE AS PER STANDARDS. IS 8130 TOLERANCE: UP TO 4.0 SQ MM+/-0.5 MM. 6.0 SQ MM AND 10 SQ MM+/-1.0 MM AND ABOVE 10 SQ MM+/-1.2 MM
- THE ABOVE DATA IS INDICATIVE AND MAY BE REVISED WITHOUT PRIOR INFORMATION. NEONEX CABLES WILL NOT BE LIABLE FOR ANY DAMAGES ARISING OUT OF INCORRECT APPLICATION.
×
