PRODUCT DESIGN

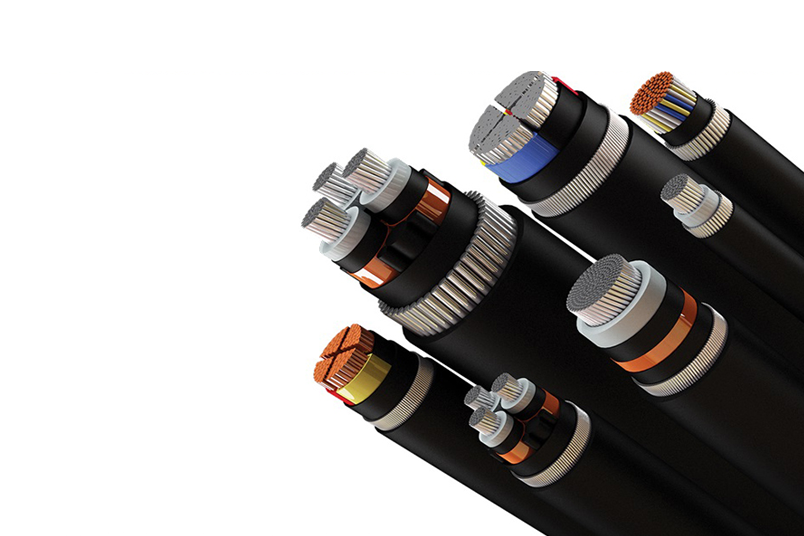

CABLE STRUCTURE

CONDUCTOR

ALUMINIUM /COPPER SOLID OR STRANDED CONDUCTOR ACCORDING TO IS 8130,IEC 60228

INSULATION

(XLPE) CROSS LINKED POLYETHLENE COMPOUND

INNER SHEATH

PVC TYPE ST-2 AS PER IS 5831; OPTIONS: FR TYPE/ FRLS TYPE

ARMOURING

SINGLE LAYER OF G.1/ALUMINIUM ROUND WIRE/ FLAT STRIP

OUTER SHEATH

PVC TYPE ST-2 AS PER IS 5831:OPTIONS: FR TYPE/ FRLS TYPE

COLOUR OF OUTER SHEATH

BLACK OR ANY OTHER COLOUR AS PER REQUIREMENT.

TECHNICAL DATA

OPRATING TEMP

TEMP -20°C TO MAX, +90°C

NOMINAL VOLTAGE

1100V

TEST VOLTAGE

3 KV

MIN. BENDING RADIUS

15 X OD (SINGLE CORE)

MIN. BENDING RADIUS

12 X OD (MULTI CORE)

TECHNICAL ADVANTAGE

HIGHER CURRENT CARRYING RATING

HIGHER SHORT CIRCUIT RATING

THERMOSETTING IN NATURE.

LONGER SERVICE LIFE

LOW DIELECTRIC LOSSES

HIGHER INSULATION RESISTANCE

RESISTANCE TO CHEMICAL & CORROSIVE GASES ETC.

COMPARATIVELY HIGHER CABLE OPERATION TEMPERATURE 90° C AND SHORT CIRCUIT TEMPERATURE 250°CTECHNICAL ADVANTAGE

APPLICATION

POWER CABLES FOR USED ENERGY SUPPLY ARE INTALLED OUTDOORS, IN GROUND ,DUCTS, POWER STATIONS ALSO IN INDUSTRIES AND DISTRIBUTION BOARD

STANDARD LENGTH & PACKING

100, 200, 300, 500, 1000 METER IN WOODEN REELS (± 5%)

Higher Length Available on your Request

PRODUCT CERTIFICATION

IS 694:2010  7098 P-1, TUV RHEINLAND CERTIFICATE No. R60160877
