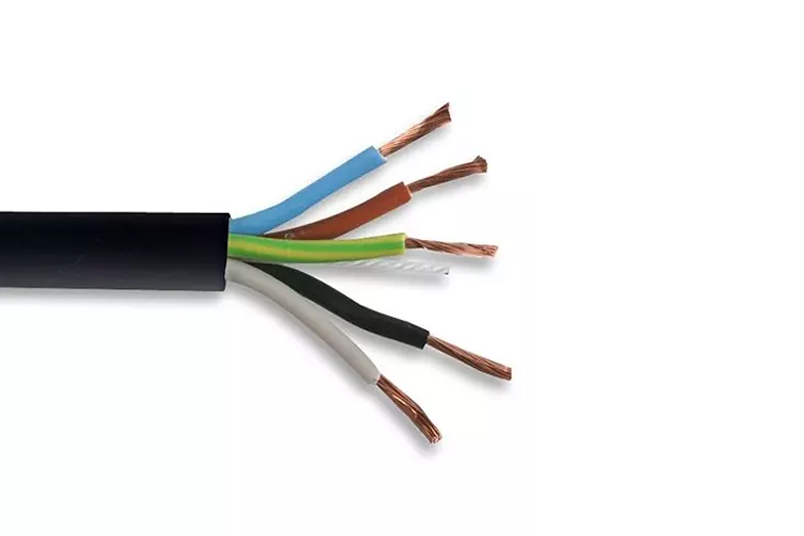

5 Core Cable
TECHNICAL DATA | ||||||
NOMINAL CROSS SECTIONAL AREA | NUMBER/ NOMINAL DIA OF WIRES (MAX.) | NUMBER/ NOMINAL DIA OF WIRES (MAX.) | THICKNESS OF INSULATION | APPROX OVERALL DIA | D.C. RESISTANCE MAX. AT 20° C | MAX. CURRENT CARRYING CAPACITY |
5 CORE | 5 CORE | |||||
Sq. mm | Number/mm | mm | mm | mm | Ω / Km | Amps |
5C X 0.5 | 16/0.2 | 0.6 | 0.90 | 7.60 | 39 | 4 |
5C X 0.75 | 24/0.2 | 0.6 | 0.90 | 8.20 | 26 | 7 |
5C X 1.0* | 14/0.3 | 0.6 | 1.00 | 9.60 | 18.10 | 12 |
5C X 1.5* | 22/0.3 | 0.6 | 1.00 | 11.00 | 12.10 | 16 |
5C X 2.5* | 36/0.3 | 0.7 | 1.00 | 12.60 | 7.41 | 22 |
5C X 4 | 56/0.3 | 0.8 | 1.10 | 14.60 | 4.95 | 29 |
NOTE:
- THE NUMBER OF WIRES AND DIAMETER MENTIONED IN THE TABLE ARE APPROXIMATE AND NOMINAL, HOWEVER THEY SHALL MEET THE REQUIREMENTS OF CONDUCTOR RESISTANCE AS PER STANDARDS. IS 8130 TOLERANCE: UP TO 4.0 SQ MM+/-0.5 MM. 6.0 SQ MM AND 10 SQ MM+/-1.0 MM AND ABOVE 10 SQ MM+/-1.2 MM
- THE ABOVE DATA IS INDICATIVE AND MAY BE REVISED WITHOUT PRIOR INFORMATION. NEONEX CABLES WILL NOT BE LIABLE FOR ANY DAMAGES ARISING OUT OF INCORRECT APPLICATION.
×
